Lesson 1.2 - Connected Objects
VIDEO LESSON (26:08 min)
Video is not accessible in some countries. If you cannot view it, you might need VPN to do so.
SOLUTION:
SOLUTION:
Video is not accessible in some countries. If you cannot view it, you might need VPN to do so.
ATWOOD MACHINE
Two different masses connected by a string that passes over a pulley. This reduces the apparent effect of gravity by having a counter weight that slows down the system allowing for more accurate measurements.
TWO WAYS TO LOOK AT THE PROBLEM

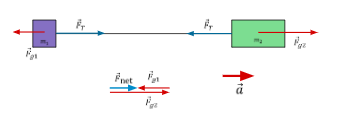

Viewpoint 1: One Object

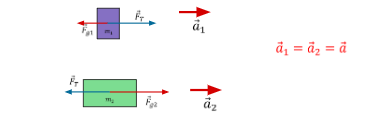

Viewpoint 2: Two Separate Objects
EXAMPLE PROBLEM #1

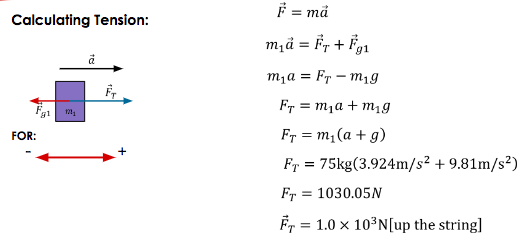

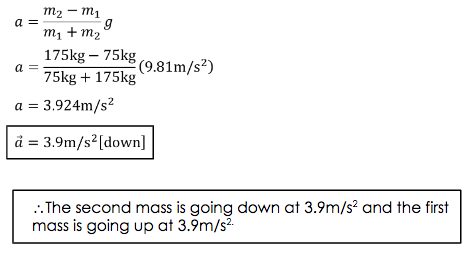

An Atwood machine consisting of a mass, \( m_2 \), of \( 175 kg \) and a mass, \( m_1 \), of \( 75 kg \). What is the acceleration of the masses and the tension in the rope.
SOLUTION:
EXAMPLE PROBLEM #2
A mass, \( m_2 \), is suspended by a string that is connected to a mass, \( m_1 \), on a table by means of a pulley. If \( m_1=3.0kg \) and \( m_2=5.0 kg \), what is the acceleration of each block if the board is frictionless?SOLUTION:
EXAMPLE PROBLEM #3

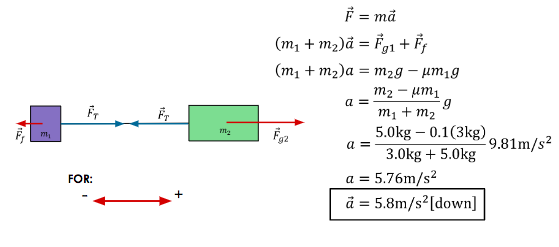

What if the coefficient of kinetic friction between the board and mass m is 0.1?SOLUTION:
